High Accuracy Differential Pressure Sensor QBM2030-30 for HVAC Ducts, Clean Rooms, Bio Labs & Industrial Applications | Airflow Monitoring in Ventilation Systems & Production Facilities
Free shipping on all orders over $50
7-15 days international
25 people viewing this product right now!
30-day free returns
Secure checkout
15799137
Description

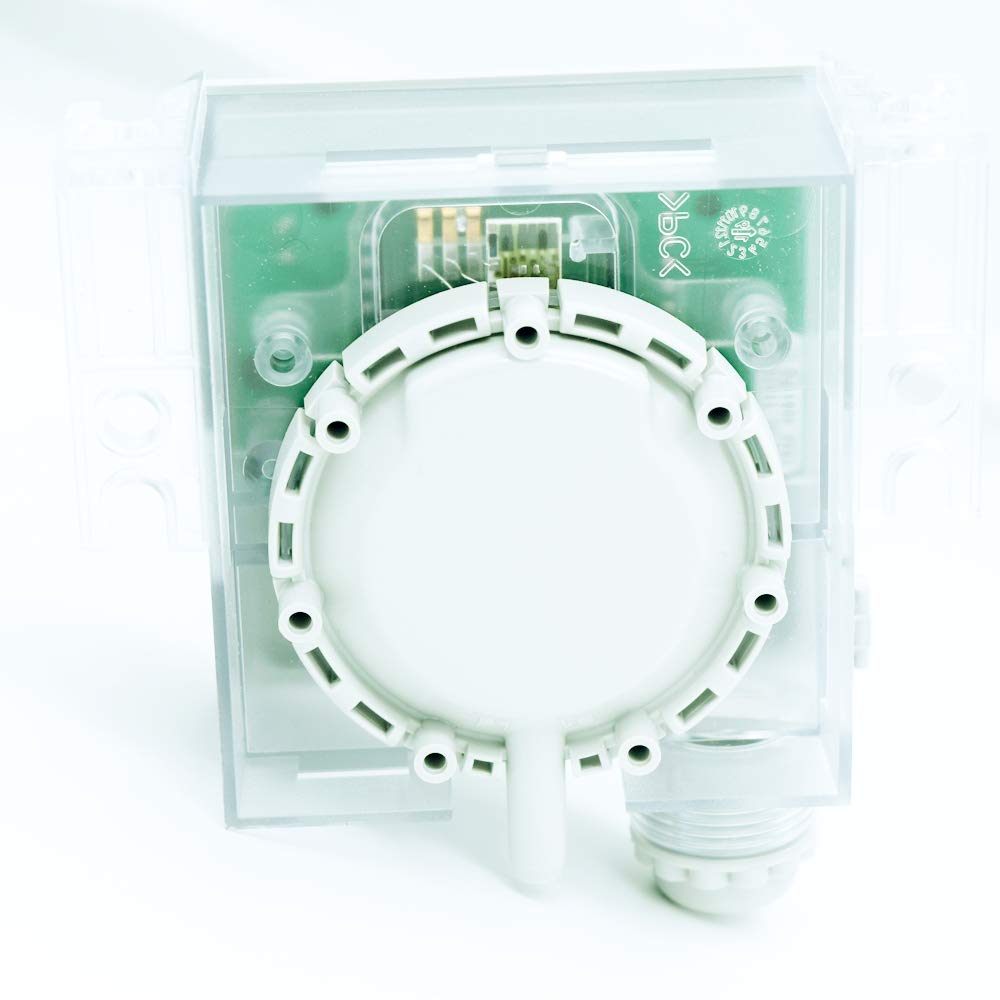

QBM2030-30 Differential Pressure Sensor has pressure-linear characteristics. For use with air or nonaggressive gases, for general HVAC applications. With diaphragm sensing element and selectable pressure measuring ranges. Applications of this differential pressure sensor are in Ventilation and Air Conditioning ducts, Pharmacueticals, Hospitals, Laminar flows, filters, control fans, Labs, Production, and Clean Rooms.differential pressure sensor online DP wall duct mount transmitter manometer AHU HVAC Ventilation environment chiller laminar flow Pharmaceutical hospital laboratory negative isolation clean air gas filter room industry Warehouse cold chain factories differential pressure sensor
Features
Pressure range 0-1000Pa/ 0-1500Pa/ 0-3000Pa
Operating Voltage AC 24V ±15%, 50/60 Hz or DC 13.5 to 33V <0.5 VA | Power Consumption 0.5 VA
Features Zero-point adjustment | Simple and fast mounting thanks to integrated fixing angle bar in the housing | Excellent long-term stability | Calibrated and temperature-compensated measuring signal | Supplied with plastic tubing | Very short response time.
Pressure Connection Connection branch, 6.2 mm diameter | Connection, electrical Screw Terminals | Degree of Protection IP 42 | Standards EU Conformity (CE); For use with air or nonaggressive gases, for general HVAC applications. With diaphragm sensing element and selectable pressure measuring ranges
Supply Scope 1 Unit of Differential Pressure Sensor; Silicon Tube; 4 nos of Screws; 2 nos of Nipple Connectors; Application In Ventilation and Air Conditioning ducts, Pharmaceuticals, Hospitals, Laminar flows, filters, control fans, Bio Labs, Production, and Clean Rooms.
