4000RPM Marine Boat Instrument Panel - 5-in-1 Dash Gauge Set with Tachometer, Fuel Level, Water Temperature, Oil Pressure & Voltmeter (White) | Perfect for Fishing Boats, Yachts & Speedboats
Free shipping on all orders over $50
7-15 days international
12 people viewing this product right now!
30-day free returns
Secure checkout
38814239
Description

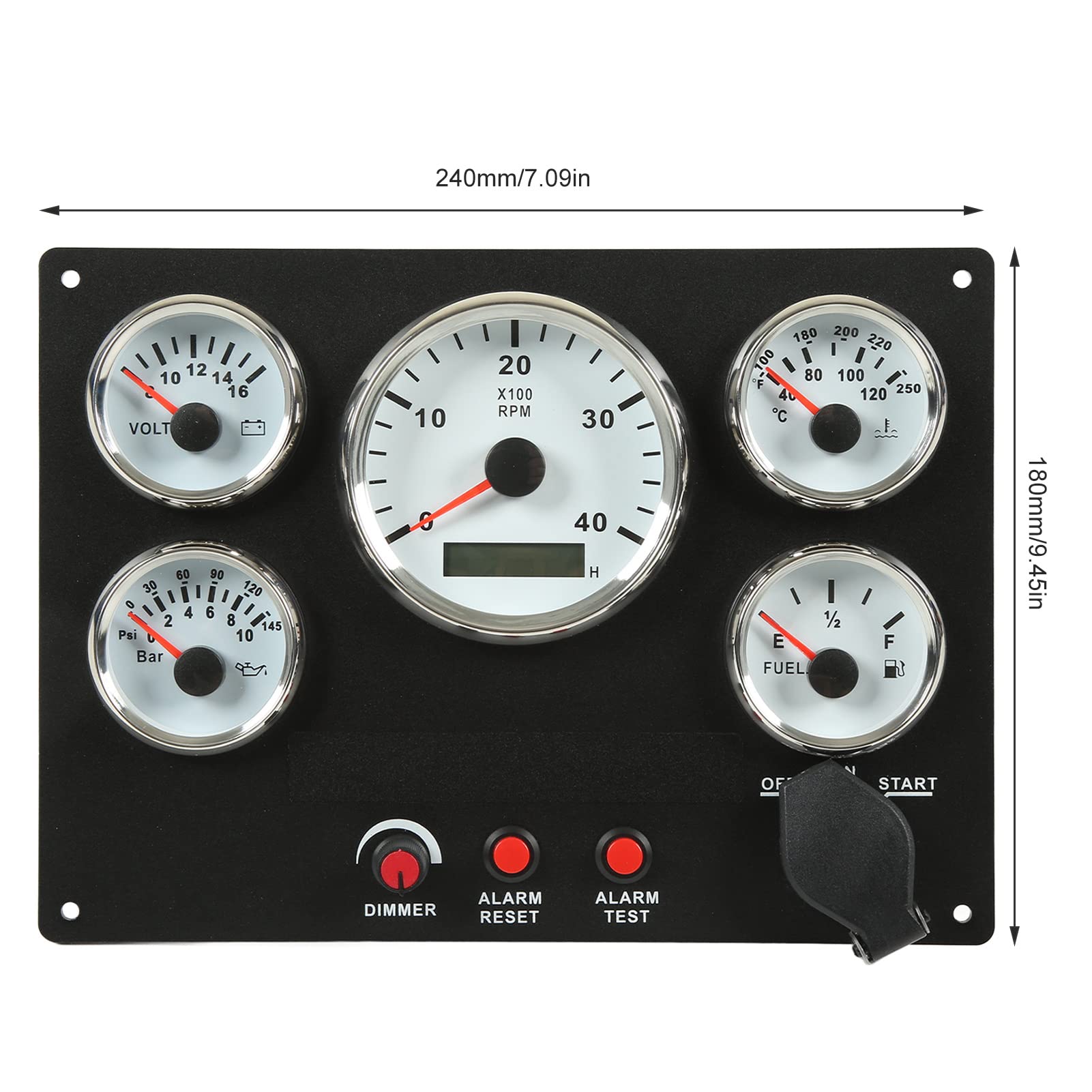

Boat Instrument Panel 4000RPM Marine Switch Panel Tachometer Fuel Level Water Temperature Oil Pressure Meter Voltmeter 5 Dash Gauge Set Specification: Item Type: Boat Instrument Panel Material: Aluminum alloy+ABS+stainless steel+tempered glass Function Display: 85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing; 52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input signal: 301-22ohms) 52mm fuel level gauge shows the fuel volume of the fuel tank: F-1/2-E; (Input signal: 0-190ohms) 52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input signal: 10-184ohms) 52mm voltmeter can display battery voltage: 8-16V; Operation Mode: LCD display, stepper motor Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system) Working Current: ≤ 100 MA Working Temperature: - 30 ℃ -+75 ℃ Storage Temperature: - 40 ℃ -+85 ℃ Backlight Color: Red Protection Grade: IP67, can work at 1m underwater, excellent antifog function; Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 241 x 177mm / 9.5 x 7in unit area to combine the engine tachometer + water temperature gauge + fuel level gauge + oil pressure gauge + voltmeter, which greatly saves space and adorns your central control. The five instruments are equipped with red background light and red LED light needles, so that all parameters can be clearly viewed even at night, At the same time, the multifunction panel also comes with DIMMER ALARM RESET/TEST; ENGINE VOLT, ENGINE OIL PRESS, COOLANT TEMP, FUEL, GEAR OIL PRESS, SEAWATER FLOW, WATER IN FUEL and other functions, and the status of the engine can be known at any time through the panel data Package List: 1 x Boat Instrument Panel 2 x Key 1 x Wiring Buckle 8 x Wiring Terminal
Features
Comprehensive Gauge Set Our Boat Dash Instrument Panel includes a 4000RPM tachometer, fuel level, water temperature, oil pressure, and voltmeter, providing a complete set of essential marine readings for your boat's dashboard.
Multifunctional Display With a multifunctional design, this panel features dimmer alarm reset or test functions, and monitors engine volts, oil pressure, coolant temperature, fuel levels, and more, ensuring comprehensive vessel monitoring.
Durable and Weather-Resistant Constructed with an aluminum alloy panel, 316L stainless steel bezel, and an antifog curved transparent lens, this instrument panel is built to withstand harsh marine environments and resist mechanical shock and vibration.
Precision Engineered Equipped with an accurate stepping motor, each of the 5 gauges uses a pulse motor to drive the pointer, offering high precision and reliability. The panel also features an ultrawide working voltage design, suitable for long-term operation from 9‑32V, with a temporary peak tolerance up to 36V.
Secure Installation Designed for reliable performance, the back harness connectors include snaps to ensure a solid connection between the instrument and the harness, making it ideal for use in strong vibration conditions without compromising its stability.
