Heavy Duty Pressure Transmitter Transducer 1/2" NPT Thread 4-20mA Output 0-10 Bar Range - Industrial, Hydraulic, HVAC Applications | MBS 3000 Model | Perfect for Oil Pumps, Water Systems & Air Compressors
Free shipping on all orders over $50
7-15 days international
12 people viewing this product right now!
30-day free returns
Secure checkout
53007806
Description

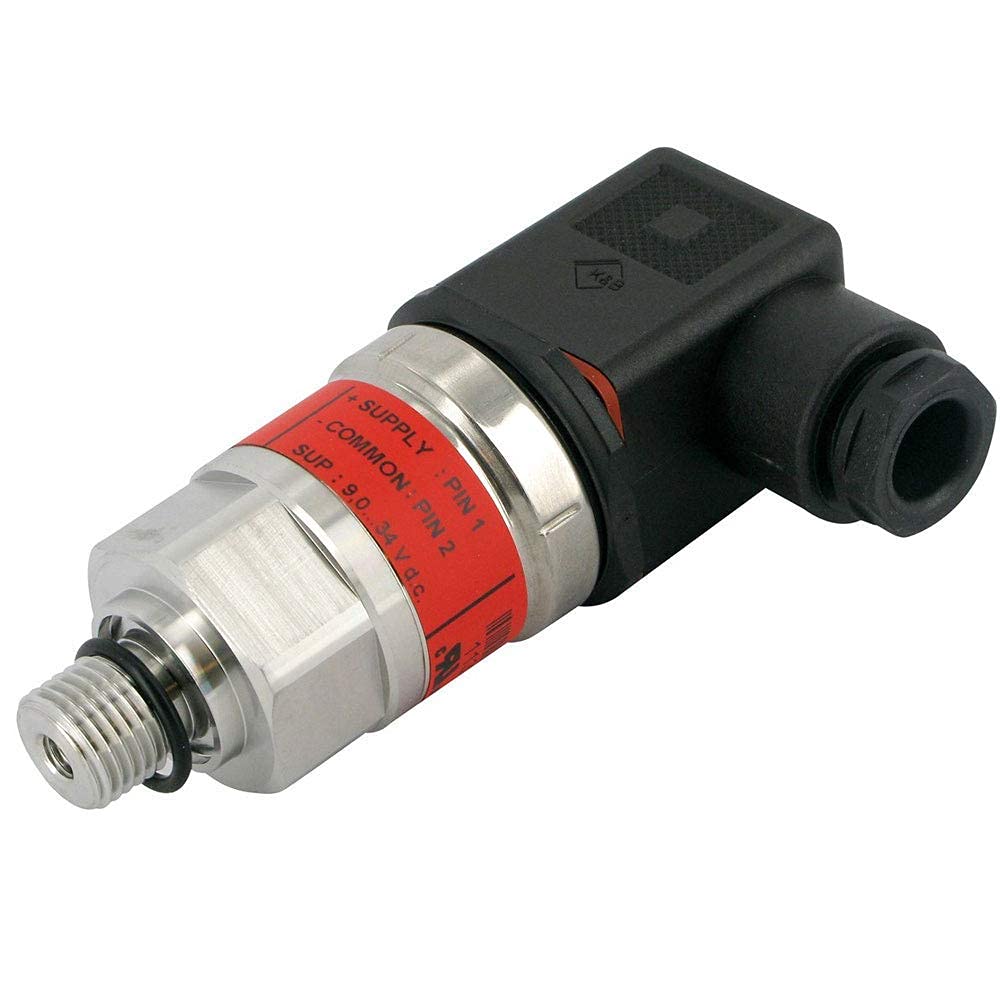

MBS3000 Pressure Transmitter comes with wide range of pressure and electrical connections from 0 up to 600 bar also with different Standard Output signal as 4-20 mA, 0-5 V,1-5 V, 1-6 V, 0-10 V, 1-10V. It is designed for use in severe industrial and hydraulic environments. It also comes with Temperature compensated and laser calibrated & For use in zone 2 explosive atmospheres. It is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. Applications: Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC.
Features
Measuring range 0 to 232 PSI | Operating Temperature -40 °C to +85 °C | Accuracy (incl. non-linearity, hysteresis and repeatability) ≤ ± 0.5% FS (typ.) & ≤ ± 1% FS (max.) | Standard Output Signal 4-20 mA| Pressure Connection G 1/4
Hysteresis and repeatability ≤ ± 0.1% FS | Thermal zero point shift ≤ ± 0.1% FS / 10K (typ.) & ≤ ± 0.2% FS / 10K (max.) | Response time < 4 ms | Overload pressure (static) 6 × FS (max. 1500 bar) | Electrical connection DIN plug
Burst pressure 6 × FS (max. 2000 bar) | Power-up time < 50 ms | Durability, P 10 – 90% FS >10 × 106 cycles | Sensor Operating temperature Normal -40 to 85 °C & ATEX Zone 2 -10 to 85 °C
Insulation resistance > 100 MΩ at 500 V DC | Enclosure IP65 | Net weight (depending on pressure connection and electrical connection) 0.2 – 0.3 kg | Temperature compensated and laser calibrated
Supply Scope 1 unit of MBS3000 pressure transmitter and Instruction manual | Applications Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC.
