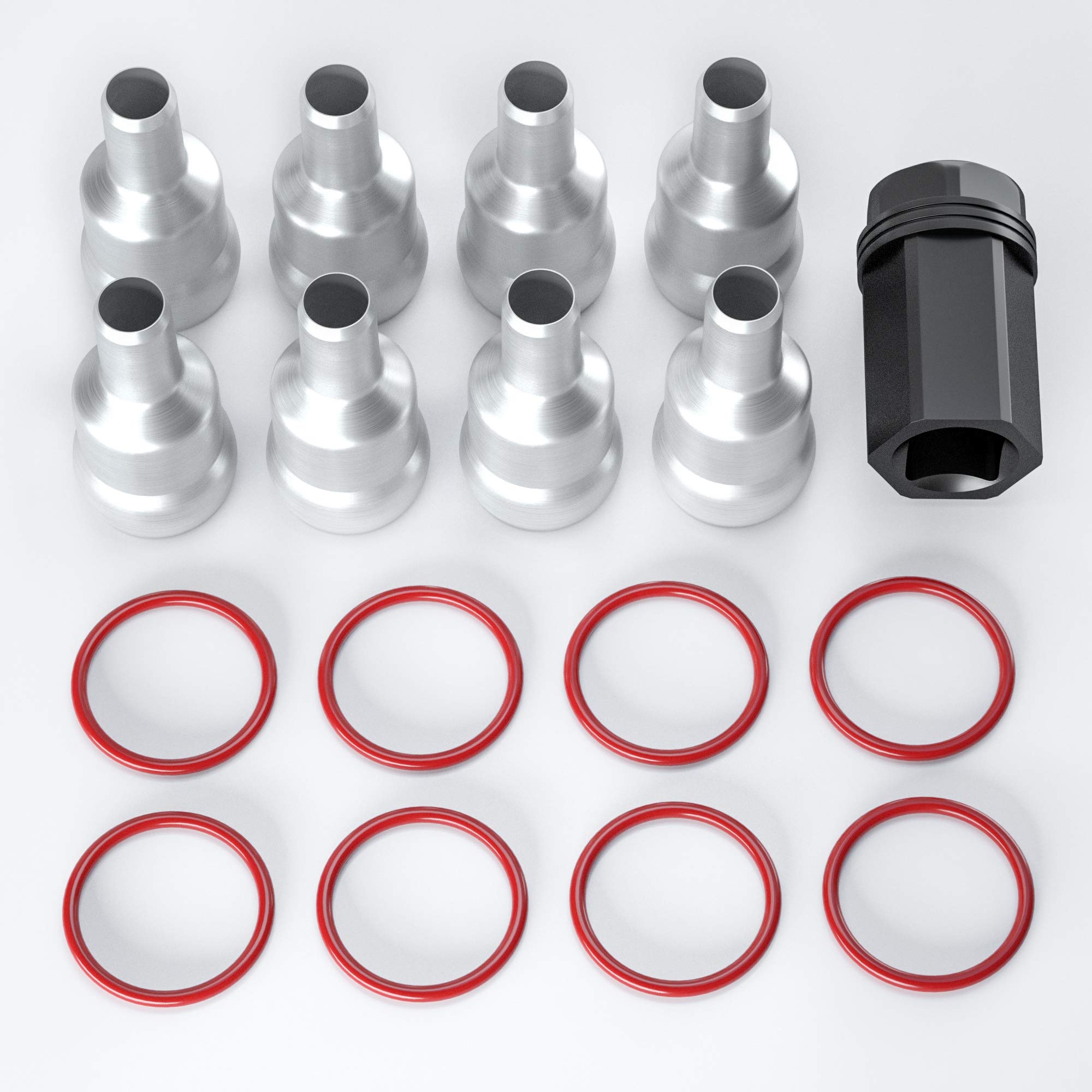

17PC High-Pressure Oil Rail Ball Tube Socket Oil Rail Leak Repair Kit Removal Tool for 2003-2010 Ford 6.0L Powerstroke Diesel Engine - Professional Mechanic Tool Set for Oil Rail Maintenance & Fuel System Repairs in Trucks & SUVs

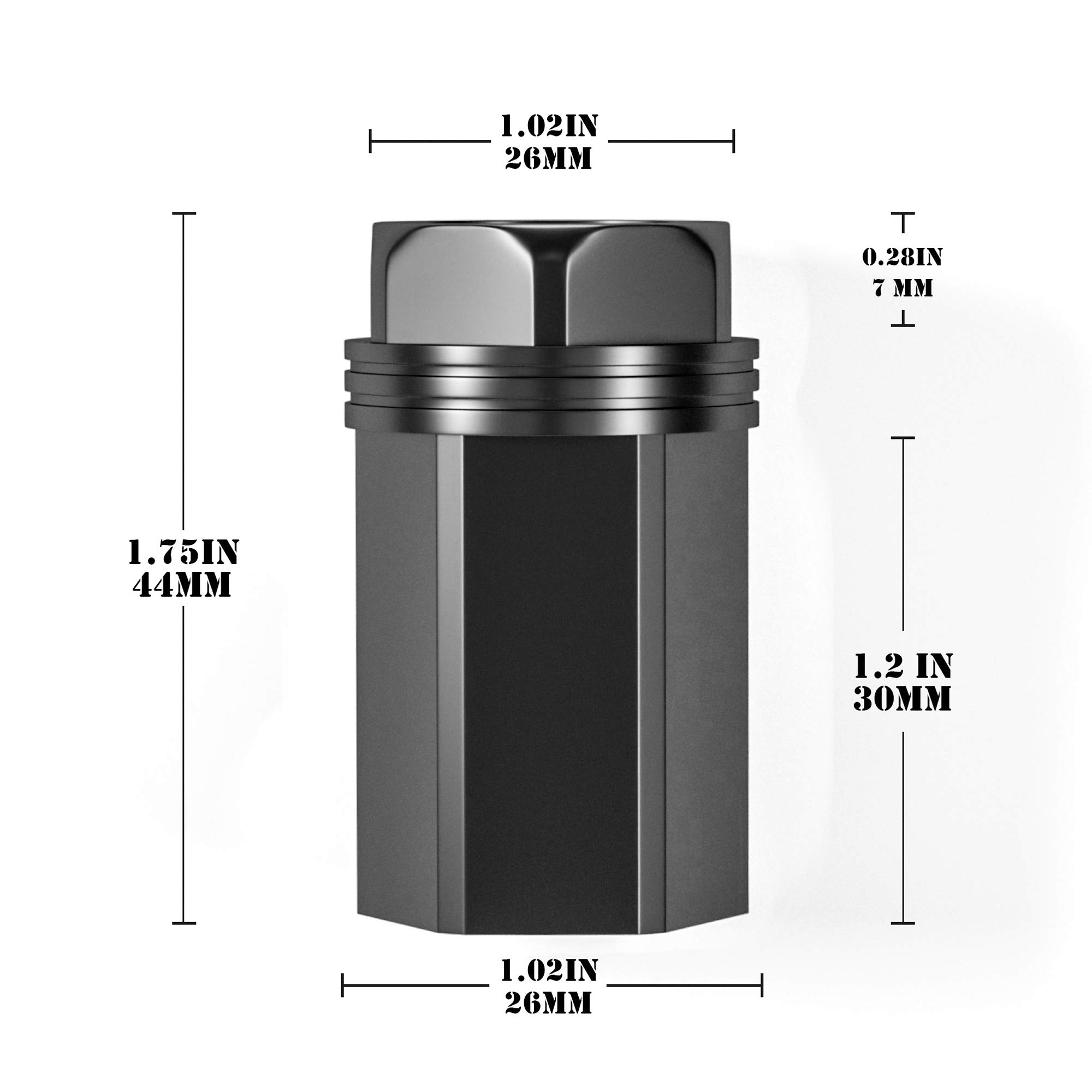

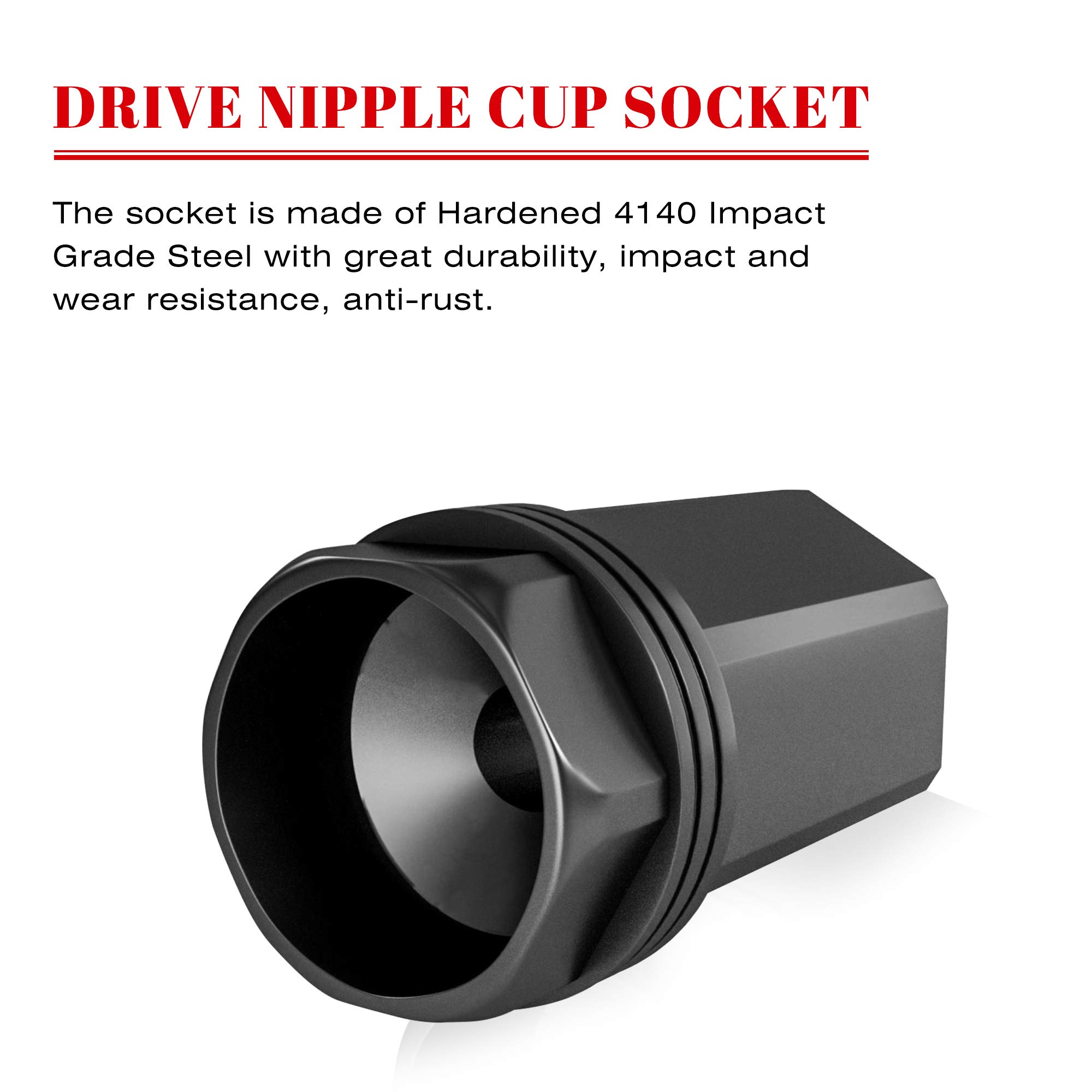

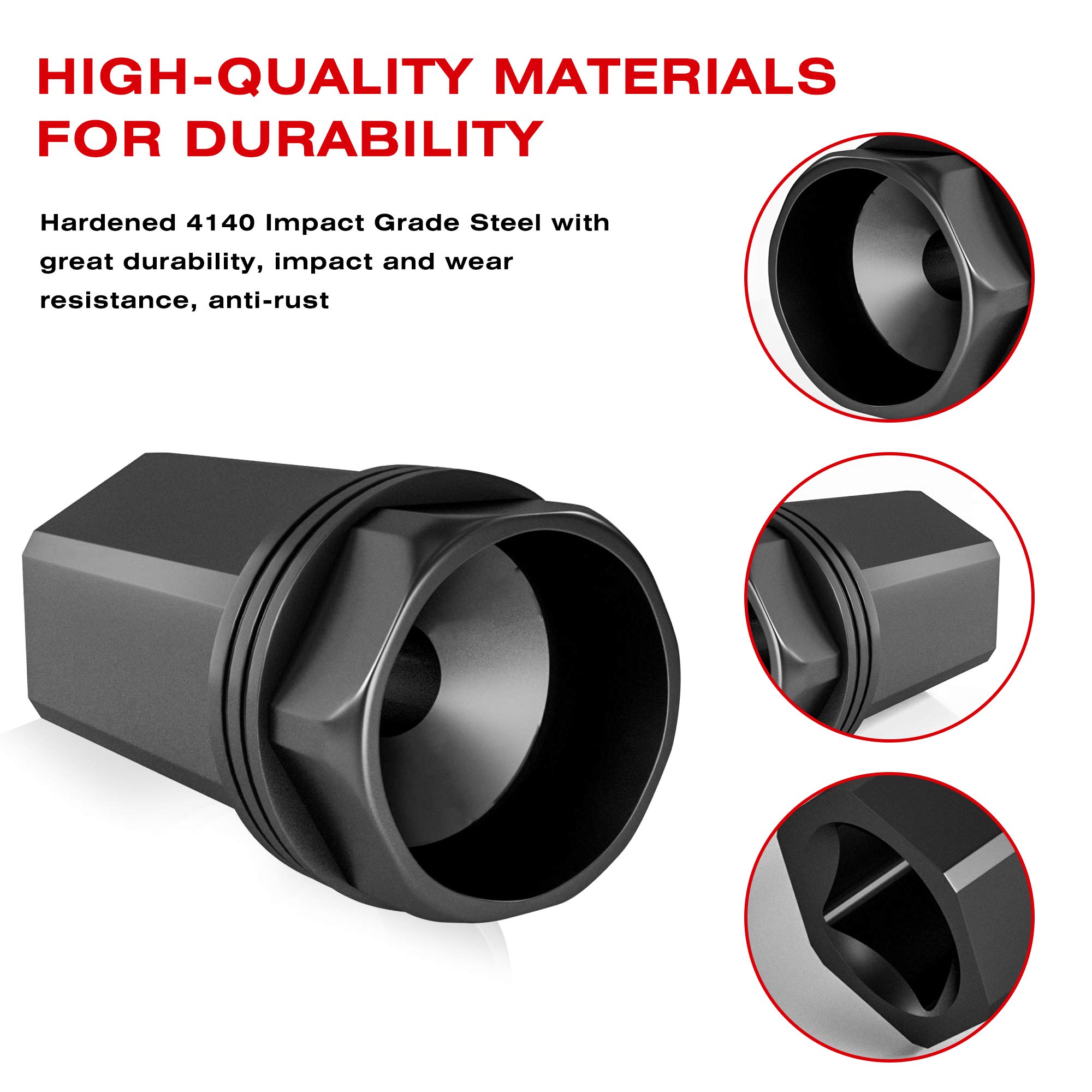

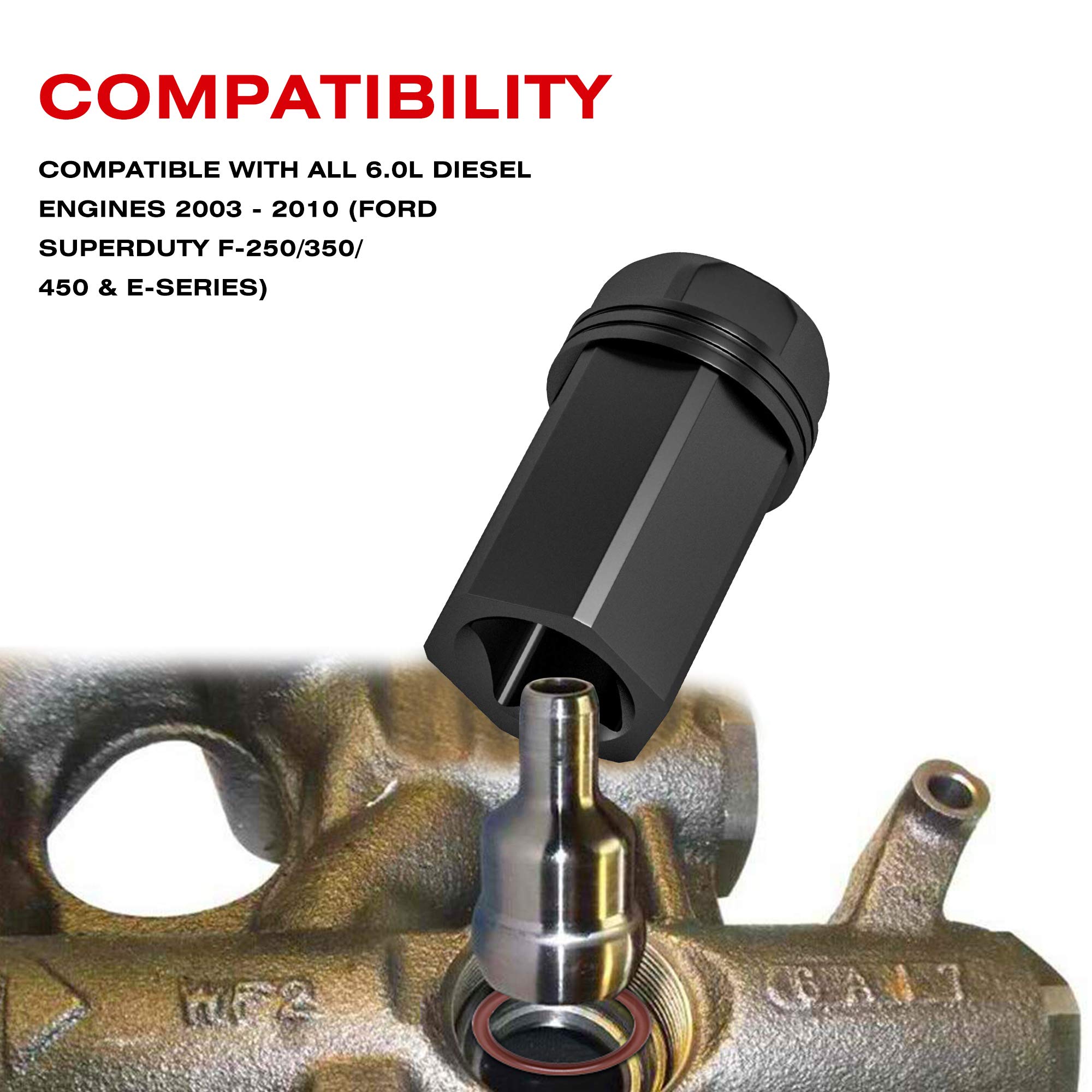

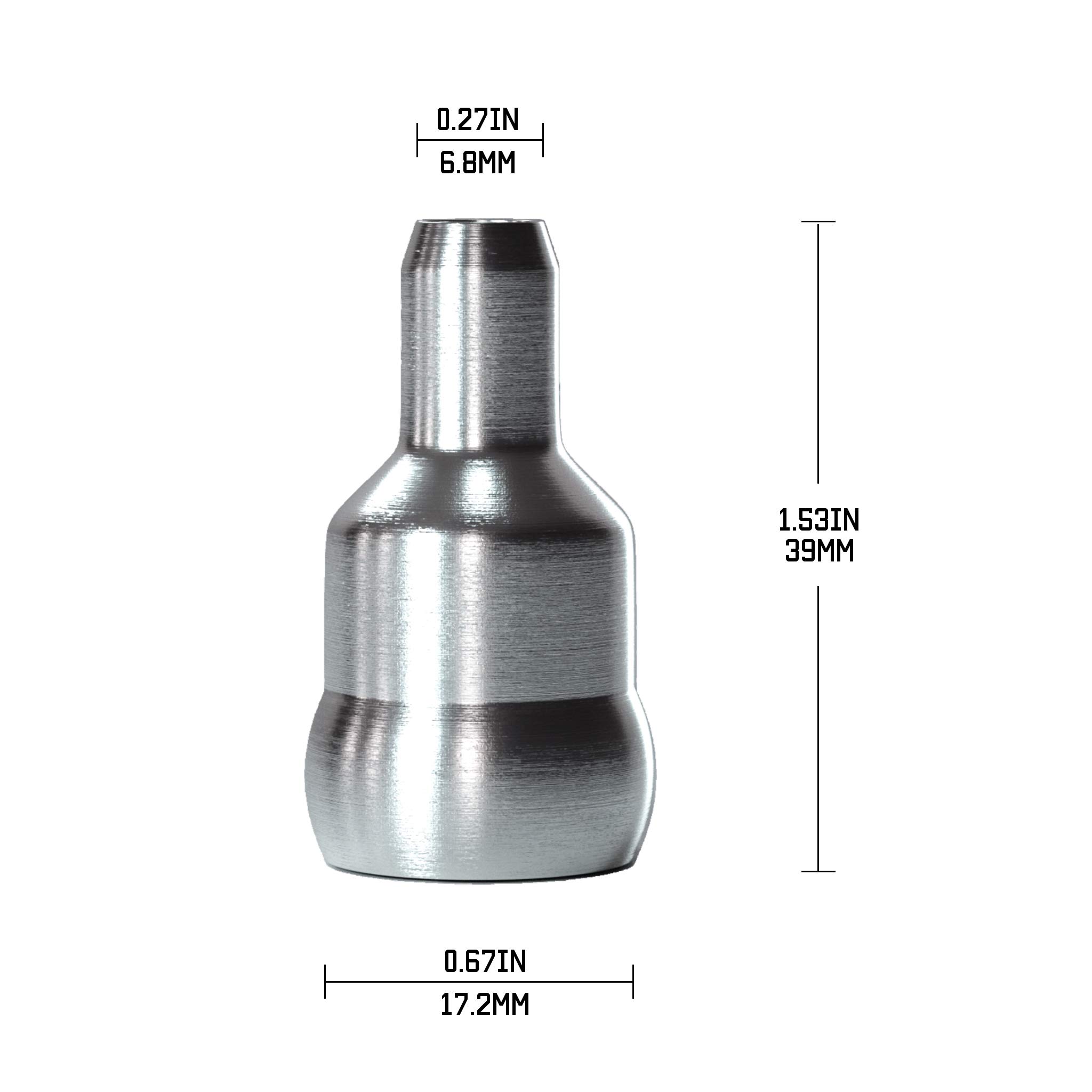

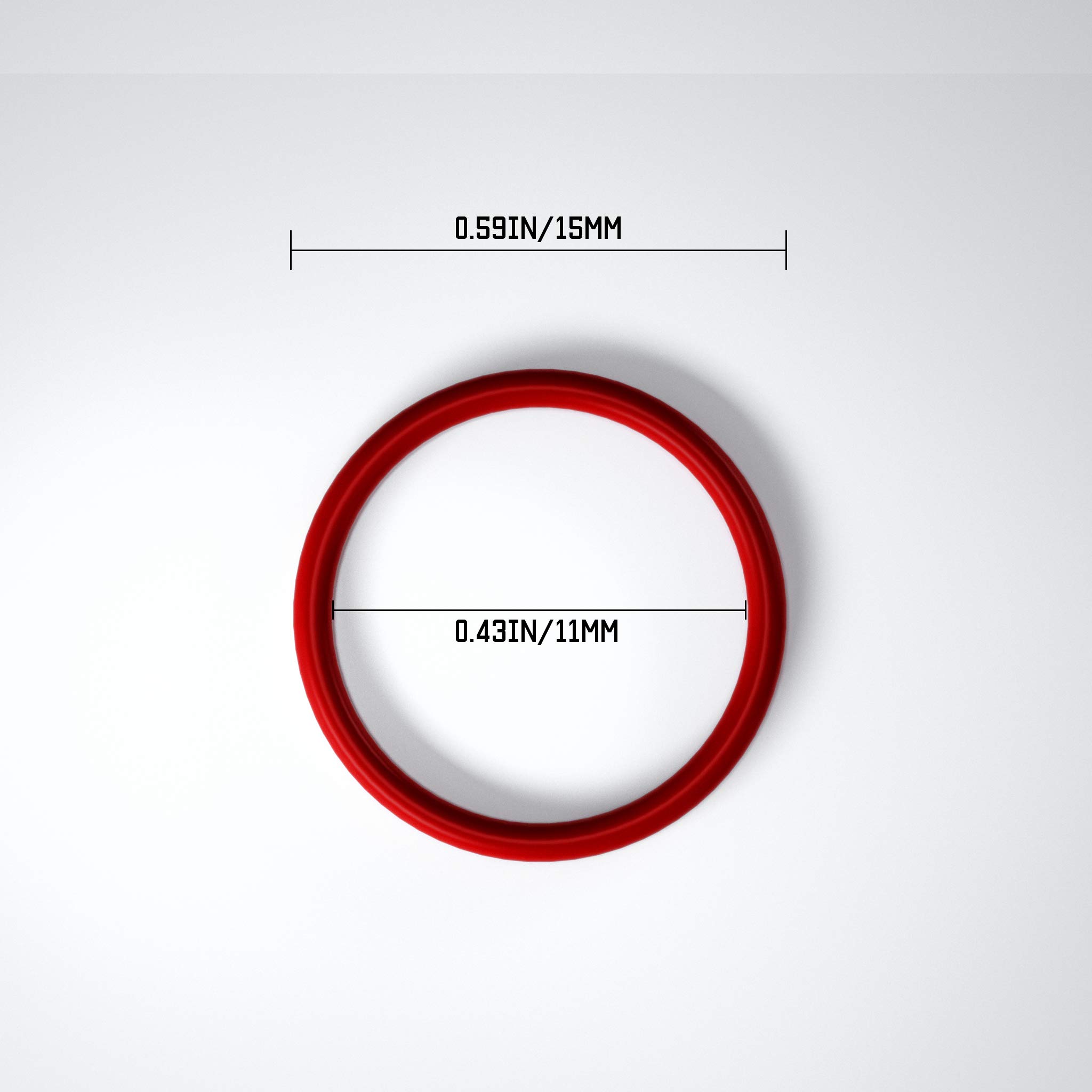

Compatible With All 6.0L Diesel Engines 2003 - 2010 (Ford Superduty F-250/350/450 & E-Series).This kit will help you to repair the oil rail leak without replacing the entire rail. Any worn injector O-rings will need to be replaced. Direct replacement to work in an easier way can save your time and money. 1/2" Drive Nipple Cup Socket Made of Hardened 4140 Impact Grade Steel with great durability, impact and wear resistance, anti-rust. Ball Tube Made of hardened tool grade steel & Leakproof design &Deflection groove diverts any oil that leaks past the Nipple Cup Seal harmlessly away from the top Injector seal& Better than OEM. Heavy Duty Viton O-Rings Made from a higher temperature Viton material to prevent repeat failure. No mold lines to compromise your seal And a perfect fit for the opening seat. Using Instructions Remove the high-pressure oil rail following service manual procedures Using the ball tube removal tool, remove the ball tube retaining nut Remove the ball tube and o-ringClean the pocket and opening seat note:The seat must be completely free of debris or imperfections to ensure the full expected service lift of the o-ringLubricate the new ball tube and supplied o-ring with clean engine oil Install the o-ring into the o-ring seal in the oil railInstall the new ball tube and retaining nut Using a torque wrench, tighten the retaining nut to 100-foot-lbs.Using the tool as a centering guide, center the ball tubes to prepare the oil rail for reinstallation onto the engine Repeat this process for the remaining ball tubes and o-rings 1PC 1/2" Drive Nipple Cup Socket 17PC Ford 6.0L Powerstroke Repair Kit Removal 13PC Ford 6.0L Powerstroke Repair Kit Removal Add to Cart Add to Cart Buying Options Customer Reviews 4.3 out of 5 stars 108 4.3 out of 5 stars 51 4.3 out of 5 stars 108 Price $37.99$37.99 $104.99$104.99 — no data 1/2" Drive Nipple Cup Socket ✓ ✓ ✓ Ball Tube no data ✓ ✓ Heavy Duty Viton O-Rings no data ✓ ✓
