Fujifilm Prescale Pressure Film Mini Sample Pack (6 Ranges) - Pressurex-Micro, Ultra Low, Super Low, Low, Medium & High - Surface Pressure Mapping Film for Tactile Sensors - Ideal for Industrial Testing, Product Development & Quality Control

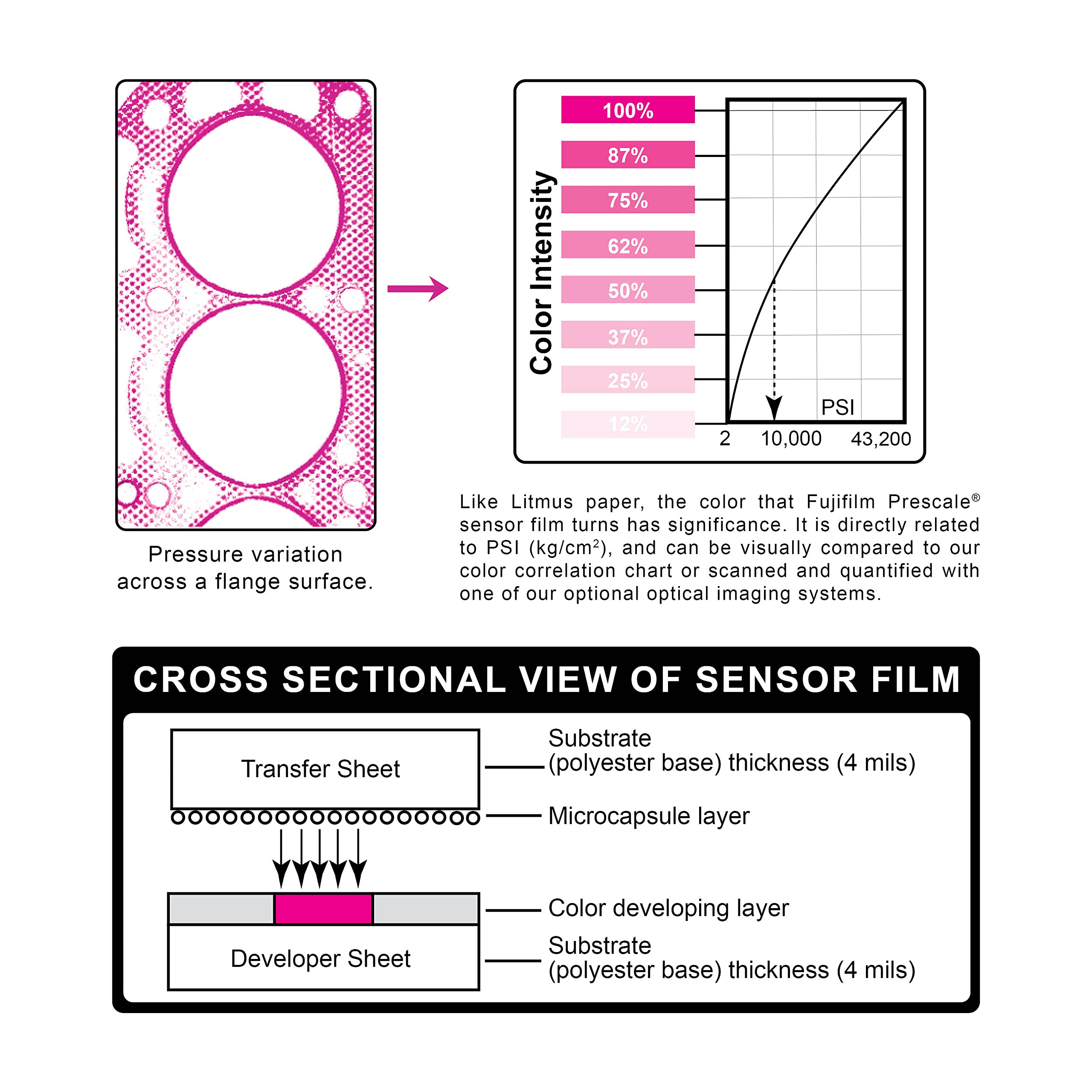

Pressure Indicating Film Sample Pack by Sensor Products Inc. consists of seven 12 in. x 10.6 in. (30.5 cm x 27 cm) pieces of Pressurex-micro, Fujifilm Prescale Ultra Low, Fujifilm Prescale Super Low, Fujifilm Prescale Low, Fujifilm Prescale Medium, and Fujifilm Prescale High. All Sample Pack orders also include one free Topaq optical imaging and analysis of any one piece of film. We also offer a mini sample pack (4 ranges included). NOTE: Fujifilm Prescale was formerly known as Fuji Prescale.Prescale is a unique pressure indicating sensor film that illuminates what is occurring between any two mating, contacting, or impacting surfaces.Simply place the paper-thin pressure indicating film between your two surfaces, whether in your product, process, or R&D environment and the film instantaneously and permanently changes color to capture a “snapshot” in time of the maximum compressive load that has occurred between the two surfaces and the magnitude of that pressure (in PSI or Kg/cm^2).The pressure film immediately develops to a shade of magenta whose intensity is tightly correlated to a precise level of pressure (in PSI or Kg/cm^2).Conceptually similar to Litmus paper, the color intensity (ie pressure magnitude) that the film captured when under compressive load can readily be translated into a precise pressure level (in PSI or kg/cm^2) by visually comparing the pressure film to a color correlation chart that is included with the purchase).Additionally finer interpretation may be resolved by using an optical scanner product that digitally analyzes the pressure indicating film.Common applications include heat seal planarity, roller set parallelism (nip impressions), object impact, lamination press, heat sink pressure, bolted interface pressure and clamping forces.
