SSI TECHNOLOGIES MG-MD Series Digital Pressure Gauge Sensor with LCD Display - 15psig Operating Pressure, 30V, 0.50% Accuracy, 1/4-18 NPT Male Connector - Ideal for Industrial Hydraulic Systems, Pneumatic Controls & Process Monitoring
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
78462029
Description

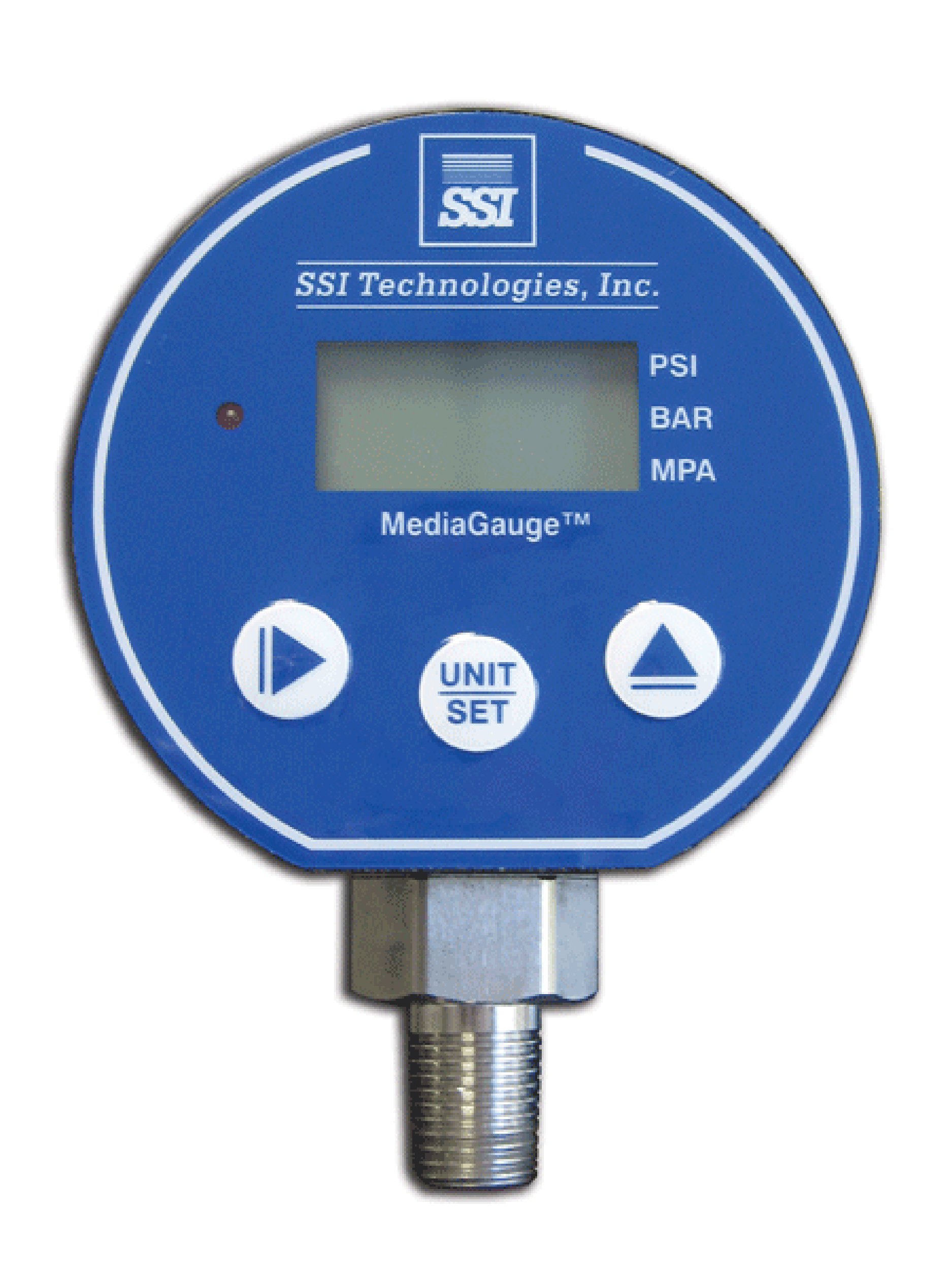

The MG-MD Series is a multi-functional digital pressure gauge that is equipped with a 3-inch dial, a standard ¼-inch NPT bottom-mount pressure port constructed from 304L stainless steel, and works on an 8-30 Vdc external power supply that also allows the gauge to interface with monitoring and control systems.The gauge features a media-isolated piezoresistive pressure sensing element, along with signal conditioning circuitry that provides temperature adjustments and calibration compensation. This design enhances the gauge's durability, accuracy, and lifespan. This model is well suited for a wide range of commercial and industrial applications involving gases or liquids that are chemically compatible with 316L and 304L stainless steel. Some applications include general purpose, testing, MRO, process control, refrigeration, spraying systems, pumps, hydraulics and pneumatics, compressors, agriculture, and hydrogen storage.
Features
Monitoring and Control Outputs Has a 4-20mA output with limit switch (NPN transistor output) that are controlled by programmable high/low pressure set points
Highly Accurate Accuracy is ± 0.25% full scale; Uses signal conditioning circuitry for temperature and calibration compensation
External Power Source Operates off a 8-30vdc external power supply and includes a 12V 4-pin DIN connector cable
Typical Applications General purpose, process control, MRO, water, compressors, spraying systems, pneumatics, flow, robotics, hydrogen storage, agriculture, refrigeration, hydrogen storage
Standard Features backlit LCD display with multiple pressure unit readings (PSI/BAR /MPA), 4-digit LCD display, peak hold, zero adjustment
