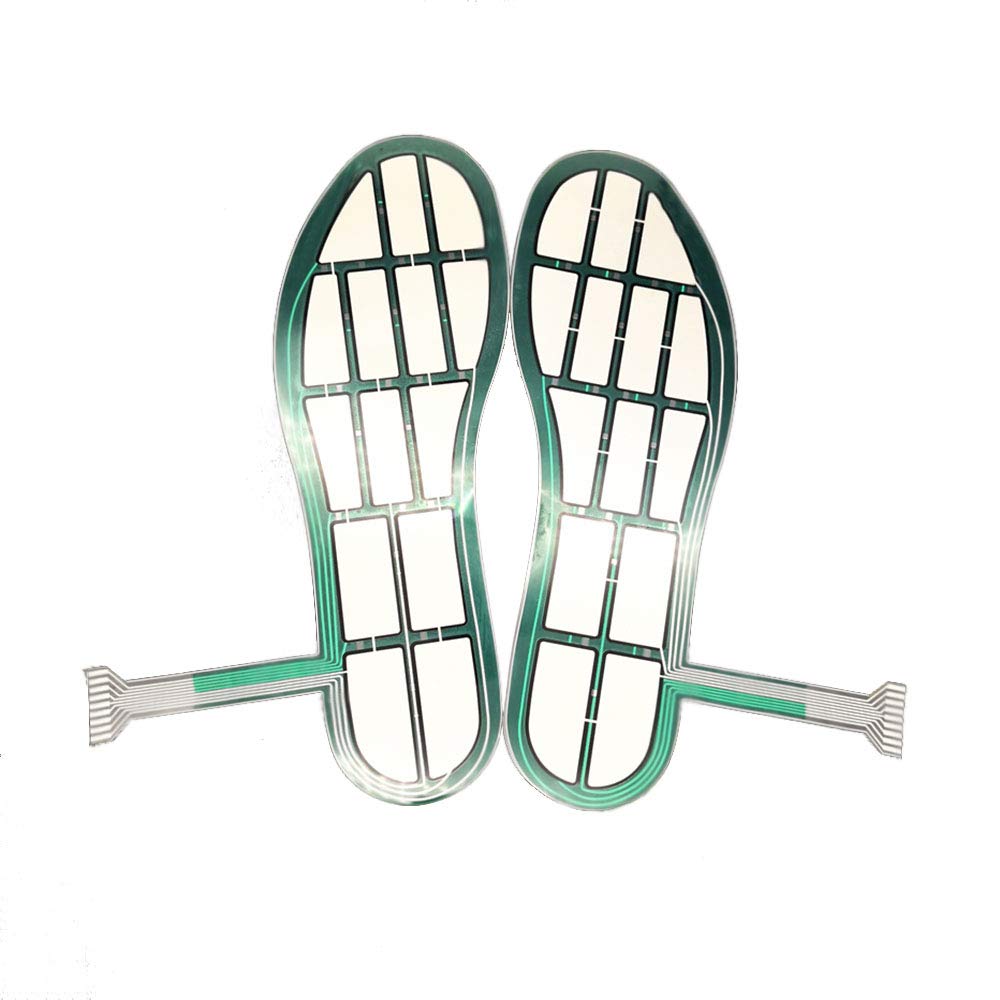

Taidacent 2-Pack RX-ES39A Piezoresistive Flexible Film Foot Pressure Sensor - 14 Independent Sensing Points FSR Distributed Pressure Measurement (Male Terminal, EU39) for Gait Analysis, Sports Biomechanics & Medical Rehabilitation

Product Introduction RX-ES39A is a 39-yard foot pressure sensor with a total length of 245mm. It adopts an array of 5 rows*4 columns. The single-chip sensor has a total of 14 independent sensing units. In order to ensure the consistency of the sensor collection effect, The area of ​​each sensing point is as close as possible. The distributed pressure sensor is designed independently for each sensing point to achieve minimum interference. This type of sensor supports customization, and can design different number of sensing points and adjust the sensing point position according to requirements. For the convenience of use, we have three contact modes for this sensor, a. male terminal, high flatness requirement, optional male terminal, generally connected by welding; b. female terminal, with terminal housing, and 2.54 The mm pitch DuPont line is directly connected, and the connection is convenient; the c.FFC line is plugged, and the standard center distance of the cable is 1 mm, and the space is small. Product detailed size parameters Sensor thickness 1MΩ Hysteresis: 500,000 times, positive pressure cycle test Field of application · Plantar pressure distribution test; ·Sports data collection; ·Rehabilitation. Instructions for use a) The sensor area should be flat to fit the test surface; b) Avoid sharp objects acting on the sensing area; c) The sensor has a temperature drift phenomenon, avoid using it above 60C;
